Location: Vitra Campus, Weil am Rhein, Germany
Architectural Planning: Kazuyo Sejima & Ryue Nishizawa
Architectural Execution: Mayer Bährle Freie Architekten BDA, Lörrach, Germany; in partnership with nkbak, Frankfurt, Germany
Project Team: SANAA team: Takayuki Hasegawa, Marieke Kums (ex-staff); nkbak team: Nicole Kerstin Berganski, Andreas Krawczyk; Mayer Bährle Freie Architekten BDA
Area: 20,455 sqm
Photographs: Christian Richters, Julien Lanoo, Human Wu, Nicole Berganski, SANAA
Structural Planning: Bollinger und Grohmann GmbH, Frankfurt, Germany; SAPS – Sasaki and Partners, Tokyo, Japan
Outside Facilities: Roth Engineering Office, Lörrach, Germany
Energy Technology: Transsolar Energietechnik GmbH, Stuttgart, Germany
Heating, Ventilation, Air Conditioning And Refrigeration: Henne & Walter Engineering Office for Technical Building Systems, Reutlingen, Germany; Building automation: Baumgartner GmbH, Kippenheim, Germany
Façade Construction And Implementation: STRABAG AG, Vienna, Austria
Façade Panels: k-tec GmbH, Radstadt, Austria
Façade Structure: Imagine structure GmbH, Frankfurt, Germany
Structural Physics: Horstmann + Berger Engineering Office for Structural Physics, Altensteig, Germany
Fire Protection: IBB Grefrath Engineering Office for Fire Protection, Sallneck, Germany
Shelving Systems: SSI Schäfer, Fellbach, Germany
Surveying: Engineering Office for Surveying Technology Dipl. Ing. Karl-Friedrich Weber, Müllheim, Germany
Soil Mechanics, Earthworks And Foundations: Geological engineers Dipl. Ing. B. Mannsbart, Schopfheim, Germany
Health And Safety Coordinator: Henseleit & Partner, Waldkirch, Germany
Client: Vitra Verwaltungs GmbH, Weil am Rhein, Germany
Site Area: 50,000 sqm

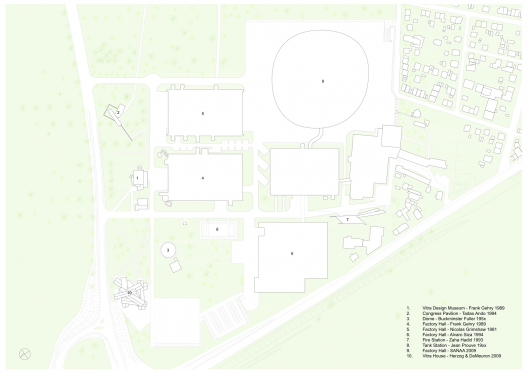

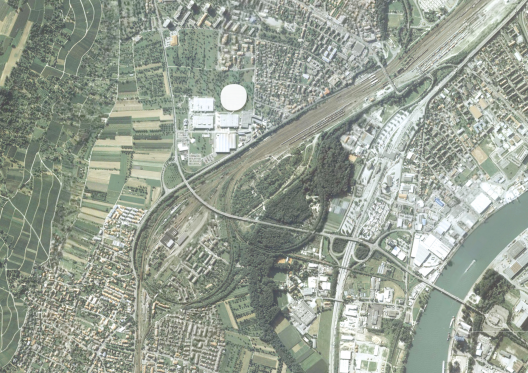

Development of the Vitra Campus
After 1993 – the year in which Tadao Ando’s Conference Pavilion and the Fire Station by Zaha Hadid were completed, followed by the dedication of Álvaro Siza’s factory hall one year later – no new buildings were constructed on the Vitra Campus in Weil am Rhein for more than a decade. A new expansion phase began in 2006 with commissions assigned to Herzog & de Meuron and the Japanese architectural team SANAA. The Basel-based architects were entrusted with the VitraHaus project on a site outside of the actual production compound in the northern corner of the Campus. The VitraHaus, which opened in early 2010, serves as a presentation venue for the Vitra Home Collection and marks the entrance to the company premises together with Frank Gehry’s Vitra Design Museum. SANAA began to plan a production facility for Vitrashop – a shop fitting company within the Vitra Group – on the south side of the Campus. The completion of these two new buildings also achieved a partial restructuring of the Campus grounds by separating operational logistics from public visitor traffic. The central axis leading to the Hadid Fire Station is now mainly used by visitors, while deliveries and dispatches are primarily routed through the access road that lies on the eastern side of the premises.
The selection of SANAA
By choosing SANAA for this project, Vitra continued a strategy pursued for the previous 25 years of commissioning internationally renowned contemporary architects with the expansion of the Campus. The architectural firm SANAA (Sejima and Nishizawa and Associates), which was founded by Kazuyo Sejima and Ryue Nishizawa in Tokyo in 1995, initially established its reputation with residential structures and small museum buildings in Japan. In the first decade of the 21st century, they completed a number of prominent projects in Europe and North America, including the Zollverein School of Management and Design, the Theatre and Cultural Centre in Almere, the Glass Pavilion at the Toledo Museum of Art, the New Museum of Contemporary Art in New York and the Rolex Learning Center at EPFL Lausanne. 2012 saw the opening of the Louvre Lens, a Louvre satellite museum located near Lille in northern France.
Rolf Fehlbaum, Chairman of Vitra’s board of directors, explains his interest in the architectural approach of SANAA and the reasons that led to the selection of the Japanese team: though imbued with lightness and precision, their architecture is not defined by rigid formalism, laboured originality or moralizing minimalism. Fehlbaum recognizes a fundamental characteristic in the ‘removal of everything that is not essential’ – in other words, a reductiveness that ultimately gives visible form to the requirements of the building in its architecture and structure.
One of the qualities of SANAA’s architecture is indeed the analysis of complex spatial and functional needs and the aim of developing strictly reductive, corresponding plans that break with traditional hierarchies and offer freedom in the usage of spaces. One such example is the 21st Century Museum of Contemporary Art in Kanazawa (2004), whose galleries of variable sizes, shapes and proportions, along with additional functional rooms, are embedded in the circulation space defined by the round glazed perimeter walls, providing a variety of options for the presentation of exhibitions.
A production facility without a role model
Almost all of the major projects that SANAA has completed up until now have been buildings for cultural institutions or universities. In Weil am Rhein – with the first industrial facility to be designed by SANAA – the idea was to apply a similar approach to the construction of a production hall.
The plan for the new structure was initiated by the desire of Vitra’s management to replace an old factory building near the southern corner of the premises that had survived the great fire in 1981 with only minor damage. The extant building was not only showing its age, but was also too small for current demands. The new facility was to provide 20,000 square metres of floor area – compared to 12,000 square metres in the old structure.
The architectural brief presented to SANAA by the company management specified a division of the total space into four separate areas that could operate independently from one another, but would also provide optimal conditions for operations that required use of the entire space. After making a detailed analysis of the brief, SANAA suggested that the preliminary decisions be revised, replacing the four orthogonal volumes that were correlated to the existing grid of the Campus with a single circular building. This proposal, which at first seemed unusual, was based on the realization that logistics and production methods no longer adhere to strictly hierarchical principles, but require flexibility. This was especially true in the case of the future occupants of the new facility, the shop fitting company Vitrashop. Although Vitrashop primarily utilizes standard components in the interiors that it creates for retail and commercial customers, the elements are customized to suit the specifications and desires of the individual clients. This contradicts a strictly linear flow of goods and fabrication methods. Consequently, the interior of the hall is divided into different zones: the northern section provides high rack storage for delivered materials and semi-finished goods; the central zone is reserved for assembly operations; and the southern section contains the storage area for finished products prior to shipping. The circular footprint of the building permits the delivery and loading of goods in completely different locations, so that the flow of traffic inside the hall is reduced, optimized and simplified. The assembly zone in the middle of the building can also be variably configured to meet new requirements based on current orders.
A circular footprint is unusual for a factory building, but all of the conditions in Weil favoured this solution, so that SANAA was able to convince the client to accept their proposal. Another ideal feature of the circular structure is the proportional relationship of the façade’s surface area to the volume of the interior space.

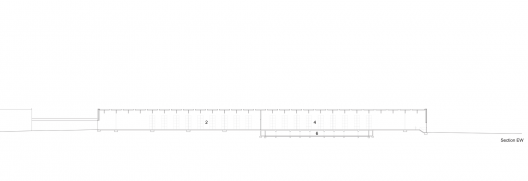

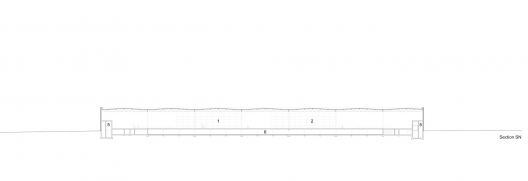

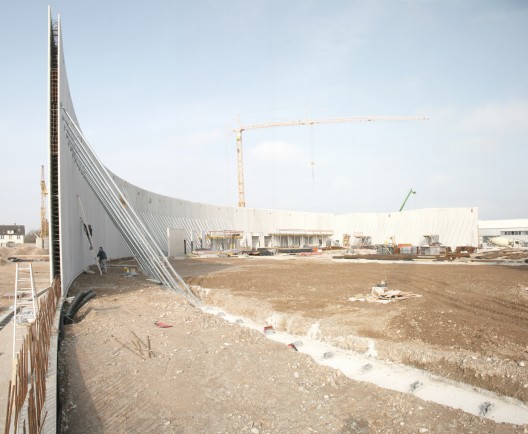

With a diameter of more than 160 metres, the round production hall – which in fact does not circumscribe an exact circle – covers a greater surface area than any other building on the Vitra Campus. Measuring 11.4 metres in height, the hall contains a basement storey in the southeastern half with a spacious underground parking garage and several auxiliary rooms. The building was erected in two stages in order to minimize interference with daily operations. The first semi-circular structure was erected next to the old factory, which was subsequently demolished to make room for the corresponding second half that completed the plan. The façade and the diameter wall that separates the two halves of the building are made of prefabricated concrete elements. Positioned as upright rectangles, the double- walled concrete elements were filled on site, thereby connecting them with one another. Due to the enormous dimensions of the perimeter, it was unnecessary for the individual elements to be curved. Together with the central wall, the round shape creates a perfect, rigid structure, which contains an orthogonal steel framework in its interior. The roof construction is supported by 9.5 metre-high steel columns positioned in a grid based on units of 17.5 x 22.8 metres. Since the exterior concrete walls brace the structure, it was possible to minimize the dimensions of the interior columns.

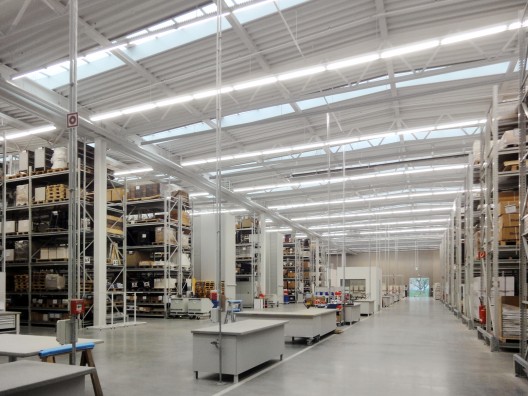

One of the major challenges for the architects was to find a solution for the installation of complex building technology – electronics, ventilation, roof drainage, fire sprinklers etc., which are distributed in different configurations throughout the interior space – that was compatible with the filigree components of the hall’s support structure. This problem was solved with astonishing precision, resulting in an interior that is clearly different from typical factory spaces. The architects did not treat this interior as a multifunctional, flexible empty space within the shell of a façade, but as a central aspect of the architectural task. Every detail, right down to the screws in the high rack storage shelving, reveals the design intentions of the architects, who left nothing to chance. Excellent lighting conditions contribute to the pleasant work atmosphere in the hall, provided by the close rhythm of parallel rooflights in the ceiling. They are augmented by individual windows in the upper part of the façade. Another essential element of the interior’s atmospheric quality is the radically reductive use of colour. Various shades of grey and white define the interior space, while the signal colours so common to typical industrial interiors are completely absent.

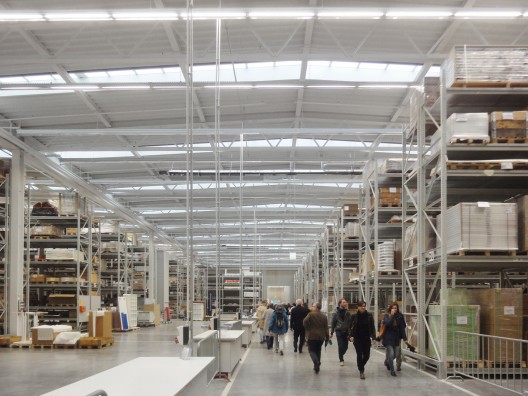

The shelving system, which is positioned in parallel rows that follow the structural grid of the interior – along with the central wall and sparingly distributed windows – provides a means of orientation in a building with enormous dimensions. The high rack storage system can be removed or reconfigured as needed. The loading bays are arranged on both sides of the building in a space along the façade that also contains offices. The radial arrangement of the partition walls is almost imperceptible due to the huge diameter of the hall. Depending on future needs, loading bays can be transformed into offices or vice versa. A workshop for emission- intensive or high-decibel activities is the only other enclosed room on the eastern side of the hall; the open upper deck serves as a lounge area.

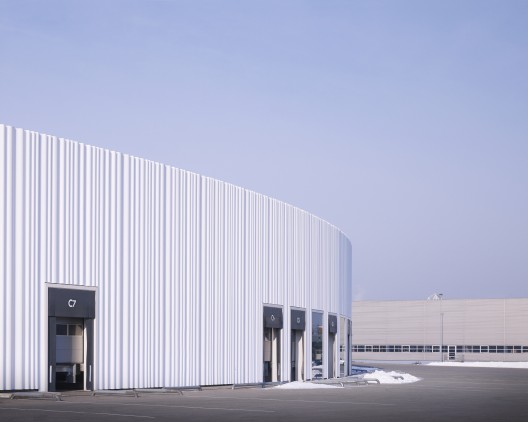

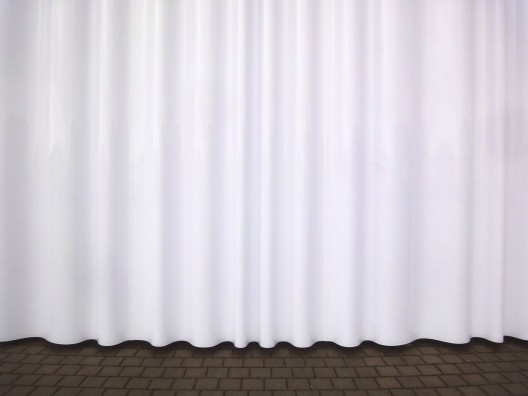

The design of the façade, whose elements are suspended in front of the exterior insulation on the concrete walls and encompass the entire building volume, presented a great challenge. The façade elements are made of acrylic glass with an undulating surface, measuring 1.8 metres in width by 11 metres in height – equal to the height of the building. The outer layer of acrylic is completely transparent, while the inner layer is an opaque white colour. The individual panels were first cast in flat sheets, then heated to 60 degrees Celsius and vacuum moulded to create the wave structure. Since no manufacturer could be found who was capable of moulding such large pieces, an oven had to be specially constructed for the purpose.
One of the architects’ main concerns was to avoid obvious visual repetition. For this reason, three different elements with varying wave patterns of narrower and wider folds were developed. Since the hanging panels – whose mounting hardware is concealed – can be rotated 180 degrees and mounted on either end, this resulted in a series of six distinct types. The aim was to arrange them in a way that avoided a recognizably repetitive pattern and that also conformed perfectly to the openings in the façade (windows, loading bays, doors).

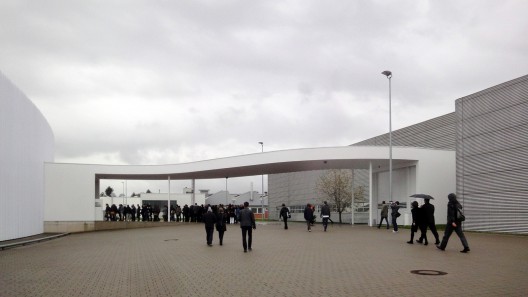

Presenting a homogenous appearance from a distance, with an almost surreal aura due to its luminous white surface, the façade gains vivacity and depth the closer one approaches. Since it is only possible to see just a part of the entire volume, the building appears to be much smaller than it actually is. It gives an impression of lightness and transparency, even though it allows no views into the interior. On the contrary: the building remains an enigma, revealing almost nothing about its function. The almost immaterial character of the factory hall is emphasized by the fact that, from the outside, only the skin of the façade – suggestive of a textile covering – is visible, while the exterior walls, roof and structural framework remain concealed.
Viewed from the outside, one does not recognize – or even suspect – that the geometry of the floor plan deviates from a perfect circle; yet perhaps this unconformity is unconsciously perceptible. Just as SANAA avoids the use of classical symmetry in their architecture, they frequently employ slightly distorted geometric figures. This may recall the aesthetic concept of wabi sabi, the Japanese notion that imperfection and aesthetic consummation are not necessarily contradictory. The subtle shape of the ‘Alessi Tea Set’ (2004) by SANAA points in this direction. In reference to their project for Vitra, Kazuyo Sejima and Ryue Nishizawa also spoke about transferring some of the liveliness inherent in freehand drawing, which always stands at the beginning of their design process, to the reality of computer calculations. Or in their own words: ‘My impression is that the circle, the perfect circle, is a bit too rigid.’
