Architects: Bernardes + Jacobsen Arquitetura
Project Architects: Paulo Jacobsen, Bernardo Jacobsen e Thiago Bernardes
Project Coordination: José Luis Canal e Ricardo Castello Branco
Project Team: Aline Bianca de Almeida, Bruna Fregonezi, Daniel Vannucchi, Edgar Murata, Fernanda Maeda, José Miguel de Sousa Ferreira, Lívia Ribas, Renata Leite, Maria Vittoria Oliveira, Maya Leal de Nobrega, Pedro Henrique Ramos, Priscilla Martins Costa e Veridiana Ruzzante.
Interiors: Bernardes + Jacobsen Arquitetura
Interiors Architect: Eza Viegas
Interiors Team: Isabel Beloniel, Luiza Torres Homem
Project Area: 11240.0 m2
Project Year: 2013
Photographs: Leonardo Finotti
Landscape: Burle Marx e Cia ltda.
Lighting: Franco + Fortes – Lighting Design
Facilities: ADDAGE Engenharia e Planejamento / Install Ltda.
Structure: Cerne- Engenharia e Projetos/ GOP – Gabinete de Organização e Projectos
Acoustics: Roberto Thompson Motta Arquiteto Ltda
Air Conditioning: Clima Engenharia, LTDA.
Windows And Frames: QMD Consuiltoria
Waterproofing: PROASSP Assessoria e Projetos
Firefighting Consultants: ML Proteção Contra Incêndio LTDA
Electronic Systems: Bosco & Associados LTDA
Signs: Jair de Souza
Soundings: Audium Áudio e Acústica
Lighting Protection Systems: Instal Engenharia Ltda.
Sustainability: CTE inteligência 360º
Managements: Engineering
Contractor: Concrejato
Images: Metro ao Cubo
Site Area: 2300 sqm
Our challenge was to unite tree existing buildings with different architectural characteristics to house the Museu de Arte do Rio, the school “A Escola do Olhar” as well as cultural and leisure spaces. The existing buildings, the palace Palacete Dom João”, the police building and the old central bus station of Rio, connected shall be part of the major urban redevelopment in the historic downtown of Rio de Janeiro. For each construction we analysed different levels of preservation.

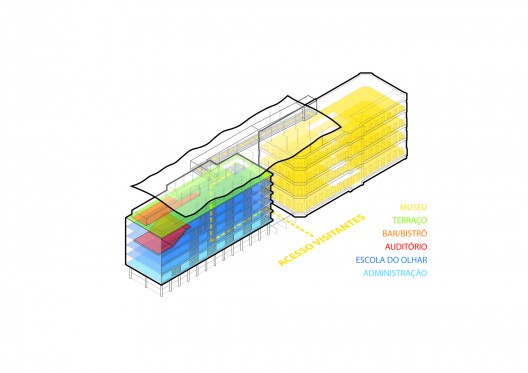

The first step was to establish a flow system allowing the Museum and school to work in an integrated and efficient manner. Therefore we proposed the creation of a suspended square on the police building rooftop, which will unite all accesses and host a bar and an area for cultural events and leisure. Consequently, the visitation will be from top to bottom.
It was established that the palace, due to its large ceiling height and structure free plan should hold the exhibition areas of the museum. The police building shall be used for the school, auditoriums, multimedia exhibition areas, administration areas and employee areas of the complex.
The stilts, currently used as an access to the road, will turn into a large foyer for entire complex, and will hold the sculpture exhibition areas. Access will be controlled between the two buildings, characterizing this empty space as internal, open and covered. The marquee of the Road, heritage element listed by the City, will be used for lavatories, store and region of loading, unloading and deposits. The connection and circulation of visitors between the two buildings, in the form of a suspended catwalk will belong to this new building, featuring the most unusual state possible.

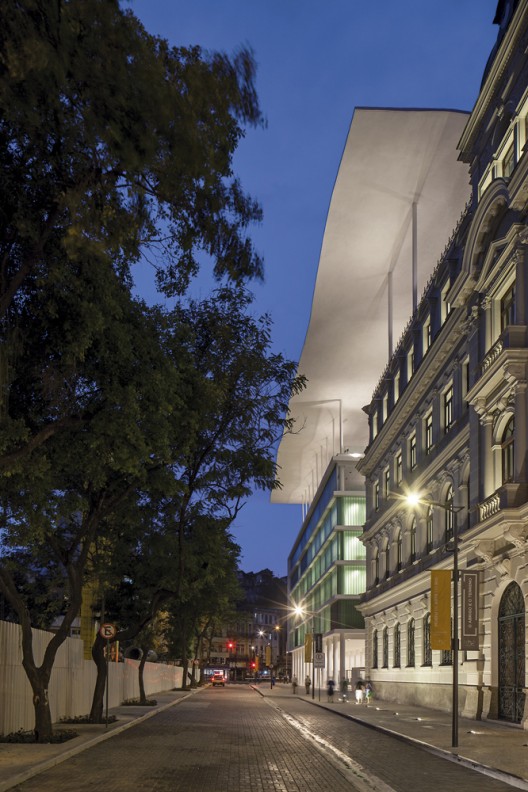

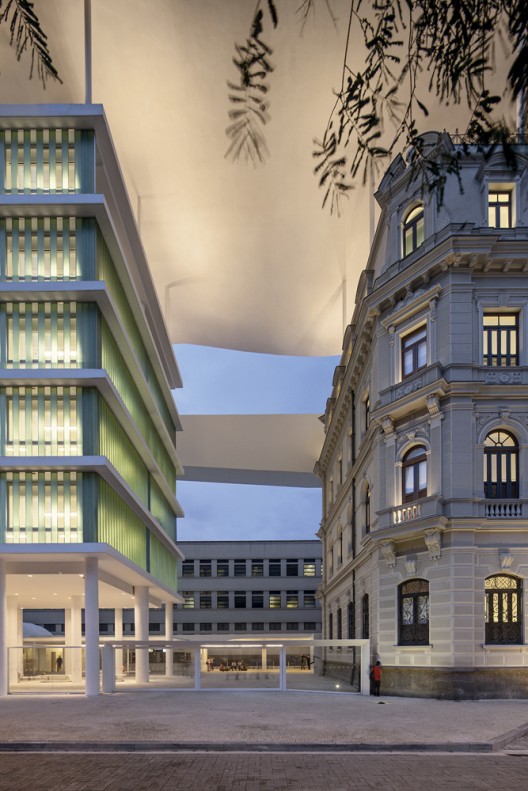

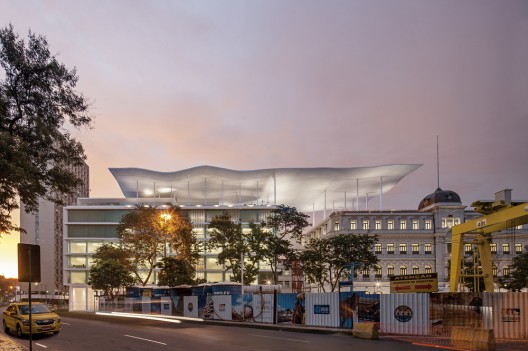

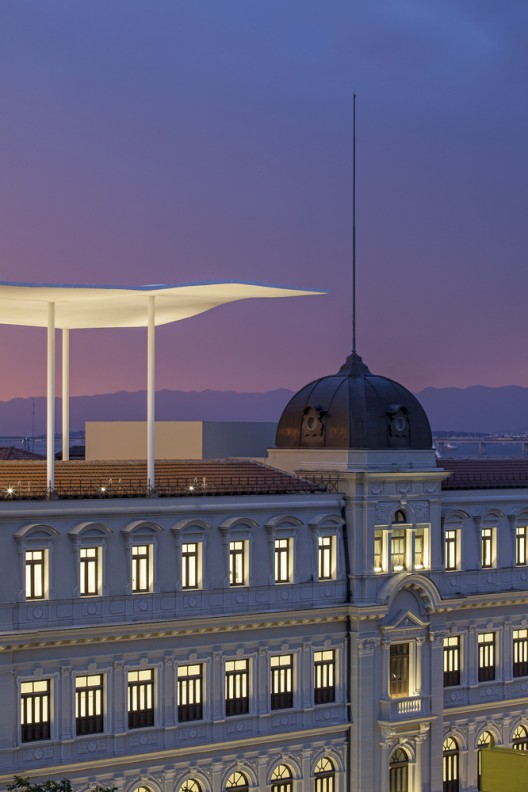

For the police building, we propose the suspension of the last floor to balance the height of the two buildings as well as the replacement of the masonry closing façade profiles using translucent glass, making the structural system of indented columns visible and revealing the stilts. Finally as the main mark of the project, we suggested that the suspended square have an abstract and aerial form. A fluid and extremely light structure, simulating water surface waves. A poetic architectural character full of meaning, simple and at the same time modern in regards to the structural calculation. This element shall be seen near and by far, and from below to who is arriving at the Praça Mauá, from above by those who are at the Morro da Conceição.
